XLR cable - Phono Jack- BNC - Speaker plug Connectors


Made in Switzerland
The Worldwide accepted standard. Rugged die cast shell, Compact design, Time saving assembly, 4 parts only, no screws. Neutrik unique chuck type strain relief
Gold contacts and good to use in audio signal, power and speaker connecting

XLR series

RT4FC-B REAN TINY XLR Female Connector 4P gold plated contacts, tiny xlr,
black metal shell,
11mm dia x 44mm overall length,
hold cable up to 4mm

RT4MC-B REAN TINY XLR Male Connector
4P, gold plated contacts,
tiny xlr, black metal shell,
10.6mm dia x 43mm overall length,
hold cable up to 4mm

NC3FX-HD
NC3MX-HD
XLR Cable Connector, Suitable for outdoor use, Heavy duty

NC3FX-HD Female Plug
7.1cm, 3 Pin, heavy duty, gold contact

NC3MX-HD Male Socket
3P, gold contact, 6.7cm, heavy duty, stainless steel shell
XLR Cable Connector, Black, gold contact, Die casting case
NC3FXX-B Female Plug
7cm, 3 Pin

NCLNEMP-3 Male Socket
3P, gold contact, 37 x 22mm(face), min hole cutout 19mm
XLR Cable Connector, Black, gold contact, Die casting case
NC3MXX-B Male Plug
6.7cm, 3P

NCLNEFP-3 Female Socket 3P, gold contact, 37 x 27mm(face), min hole cutout 22mm
XLR Cable Connector, Black, gold contact, Die casting case
NC4FX-B Female Plug
7cm, 4 pin

NCLNEMP-4 Male Socket
4P, gold contact, 37 x 22mm(face), min hole cutout 19mm
XLR Cable Connector, Black, gold contact, Die casting case
NC4MX-B Male Plug
6.7cm, 4P

NCLNEFP-4
 Female Socket
4P, gold contact, 37 x 27mm(face), min hole cutout 22mm
XLR Cable Connector, Black, gold contact, Die casting case

NC5FX-B Female Plug
6.7cm, 5P

NCLNEMP-5 Male Socket
5P, gold contact, 37 x 22mm(face), min hole cutout

NC5MX-B Male Plug
6.7cm, 5P


NCLNEFP-5
 Female Socket
5P, gold contact, 37 x 27mm(face), min hole cutout 22mm

XLR Cable Connector, Black, gold contact, Die casting case
NC6MX-B XLR Male plug
6.7cm, 6P
NCLNEMP-6 XLR Male Socket
6P

NC6FX-B XLR Female plug
7cm, 6P
NCLNEFP-6 XLR Female Socket
6P
NCLNEFP-3 S, Neutrik LXR Female Socket
3 Pin, 37 x 26.7mm(panel), Minimum cut out dia. 21mm
Silver finish, silver plated contact, Die casting case

NCRFP, Neutrik RCA Female Socket
Silver finish, gold plated contact, Die casting case,
Size: 26(W) x 31mm(H) , 21.6mm min. hole cutout

NCRFP, Neutrik RCA Female Socket
--Ditto-- but black finish

NCXLR-ring Neutrik XLR color ring
18mm inner diameter, pvc made,
chose of color ring: coffee, orange, yellow, green, blue, purple, grey, brown, white

Phono Plugs

NTP3BS 3.5 Phono plug
9mm x 39mm, 3.5mm Jack dia., 3 pole ,gold plated contact
NJP3BS 3.5 Phono connector
9.4mm x 36mm, 3.5mm Jack dia., 3 pole, gold plated contact, black shell, Mfg. in China

NP3RCS R Angle Phono plug
Right angle, 50mm x 66mm, 6.3mm Jack dia., 3 pole ,chromed finish pole, diecast shell and all metal housing

NP2RCS R Angle Phono plug
-- ditto -- but 2 pole

NP2RX-B R Angle Phono plug, Mono
Right angle, 51mm x 62mm, 6.3mm Jack dia., 2 pole , gold plated finish pole, diecast shell and all metal housing, chuck type strain reflief, machined one-piece contacts

NTP3RC-B Gold plated mini phono plug
right angle, 29mm x 32mm, 3.5mm R/A, 3 pole
NP2C Mono Phono plug
93mm overall length, 6.3 mm dia., 2 pole

NP2XB Gold Plated Mono Phono plug
93mm overall length, 6.3 mm dia., 2 pole

NP3XB Gold Plated Stereo Phono plug
93mm overall length, 6.3 mm dia., 3 pole

NA2FP Phono/XLR femal Plug , Mono
91mm overall length, 6.3 mm dia., 2 pole/XLR,
silver finish, chromed contact, Alum. Alloy die casting case

NA2MP Phono/XLR Male Plug ,Mono
-- ditto -- but male plug
, 87mm overall length

NA3FP Phono/XLR femal Plug , Stereo
91mm overall length, 6.3 mm dia., 3 pole/XLR,
silver finish, chromed contact, Alum. Alloy die casting case

NA3MP Phono/XLR Male Plug ,Stereo
-- ditto -- but male plug
, 87mm overall length

NP3C Stereo Phono plug
93mm overall length, 6.3 mm dia.
NJ3FC6 Pro. Locking 1/4" cable jack connector
6.3mm female plug, nickel housing, silver contact, 81mm overall length, silver contact, for stereo/mono, zinc diecast shell with nickel plating, 10 color coding, solder terminal
NJ3FP6C Chassis stereo Phono Jack
93mm overall length, 6mm dia.
NRCA  Neutrik RCA plug
gold plated contact, 11mm dia. x 60mm overall length, with spring tubing of 17mm

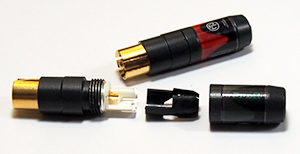

NF2C-B/2 Profi Pro. Phono RCA Plug
gold plated, male, with spring loaded ground contact, Profi makes ground before signal and breaks signal before ground, 49mm overall length, blister card packing
PROFI  9mm RCA phono male plug
gold plated, 51mm overall length, blister card packed

Speaker connector Plugs


NL4MP Socket

SPEAKON connector set
Silver contacted, Stereo

NL4FC Plug
7cm length, lock with twist

NL4MPR Round socket
51(face dia.) x 34mm(D), Min.cut out hole 24mm
NL4MP Square socket
26 x 31mm(face) x 33mm(D), Min cut out hole 24mm

Esoteric Audio USA XLR plug



XLR connector
Black, gold plated contact, zinc diecast shell


NXLR-F Female XLR
Plug
7cm length, 3 pole, pc per bag


NXLR-M Male XLR Plug
6.7cm length, 3 pole, pair per bag.

* OEM to Neutrik

last updated on 10/16/12
