Audio Grade Power Connectors
Made In USA

Characters:
- When you see the 'BLUE STAR AUDIO GRADE' you hear the best
- Special construction to improve audio/video conductivity and durable.
- Contacts are made of very heavy-duty material to maximize the clamping spring-rate and ensure conductivity
- Maximum hold largest diameter of power wire
- Best optimum process of platings to ensure sound performance

USA  WATTGATE Audio Grade Power Plug & Receptacle

Code Number Specifications

330i


330iAg

330iRH
330i RH

WGT/330i Round Power Plug
Black/Clear,24K gold plated, stainless hardware, male, body 1.72"long, 1.5" dia., 2.84" overall long

WGT/330iAg Round Power Plug
---ditto --- but with silver plated contact

WGT/330ib Round Power Plug
--Same as WGT/330i-- but black housing

WGT/330iRH Round Power Plug
--Same as WGT/330i-- but black housing,rhodium plated contact

15A 125V
Blue Star
Audio Grade
330-20
WGT/330-20 Round Power Plug
20A, T type blade, Black,24K gold plated, stainless hardware, male, body 51 mm long, 37mm dia., 72mm overall long
20A 125V
320iHC

WGT/320iHC Economy High Current IEC
Black/Clear, female, Glass filled high temperature nylon front housing, stainless hardware, some classifications are 16A/250VAC
3 step contact plating(3 layer plating process):
1) OFC copper,
2) Electroless Nickel,
3) 24K gold


body 52mm long, 37.5mm dia., 72 mm overall

WGT/320iHC-b Economy High Current IEC
--ditto-- but black housing

20A 125VAC/250V

350i

350iAg
WGT/350iAg

350iRH
350i-RH

WGT/350i Round Power Plug
Black/Clear, gold plated, female
Glass filled high temperature nylon,
stainless hardware,
*Wattgate 3 step contact plating:
1) OFC copper,
2) Electroless Nickel,
3) 24K gold

Accommodate cable dia. up to 16,63mm
body 1.72"long, 1.5" dia., 2.84" overall long

WGT/350iAg Round Power Plug
---Ditto ---but with silver plated contact

WGT/350i-b Round Power Plug
--Same as WGT/350i-- but black housing

WGT/350iRH Round Power Plug
--Same as WGT/350i-- but black housing, rhodium plated contact

10A 250V
Blue Star
Audio Grade

350iHC

350iHCAg
WGT/350iHCAg

WGT/350iHC High Current IEC
Black/Clear, gold plated, female, Glass filled high temperature nylon front housing, stainless hardware, some classifications are 16A/250VAC
*Wattgate 3 layer plating process:

1) OFC copper,
2) Electroless Nickel,
3) 10uM 24K gold

body 52mm long, 37.5mm dia., 72 mm overall


WGT/350iHCAg High Current IEC
---ditto ---but Silver plated contact

WGT/350iHC-b High Current IEC
--Same as WGT/350iHC-- but black housing

20A 125VAC/250V
Blue Star
Audio Grade
320i

WGT/320i Economy IEC Plug
Black/clear, female Polycarbonate rear housing.
Durable hi-temperature rated front housing, dust seal to protect the wiring chamber, stainless hardware

WGT/320i-b Economy IEC Plug
--ditto-- but black housing

10A 250V
15A 125V
WGT/5266i Economy IEC Plug
Black/clear, Male Polycarbonate rear housing. Glass filled hi-temperature nylon front housing, stainless hardware

WGT/5266i-b Economy IEC Plug
--ditto-- but black housing
10A 250V
15A 125V
MC/8215CT Round Power Plug
Clear/ivory, male body 1.72" long, 1.5" dia., 2.84" overall long,
Mfg. of Marinco
15A 125V
Hospital Grade
390i Audio Grade WGT/390i Audio Grade Power Plug
Black, Male, 24K gold plated, Glass filled high temperature nylon front housing.
Polycarbonate rear housing, stainless hardware, *Wattgate Three layer plating process
16A 250VAC
Audio Grade
360i ECO WGT/360i Economy Power Plug
Black, Male, gold plated, Glass filled high temperature nylon front housing.
Polycarbonate rear housing, stainless hardware
16A 250VAC

15RA

MC/15RA Right Angle Housing
For 15A, 20A straight 15A locking plugs & connectors, Black, enable wiring in 8 cover orientations, holds for cable up to 17mm dia.



381

381Ag
Silver plated contact

381Rh
381Rh

WGT/381 Duplex Wall Receptacle
Gray, Glass-filled, Nylon-tough front and rear housings,
mounting strap,rivets and grounding strip are gold plated;
*Wattgate 3 layer plating process:

1) OFC copper,
2) Electroless Nickel,
3) 10uM 24K gold
Triple-wire with spring action contacts
4" x 1.5"(LxW), 0.85" thick
ser. 321344

WGT/381Ag Duplex Wall Receptacle
--- ditto -- but with silver plated contact
ser. 364321

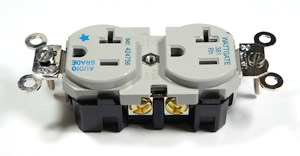

WGT/381Rh Duplex Wall Receptacle
--- ditto -- but with rhodium plated contact
ser. 424758

20A 125V
Blue Star
audio grade

Tighten the terminal screws only up to 12 in-lbs torque, Do not over tighten.
Above all are in stock, other spec please phone or write us.
