SBACOUSTICS > TWEETERS > TW29R

TW29R

SPECIAL FEATURES

  • Non-resonant diaphragm design for minimum high frequency break-up
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • Saturation controlled motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range

  • Click to download PDF
加入購物車..

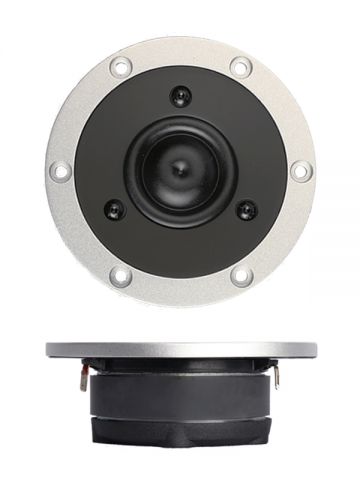

SATORI-TW29R

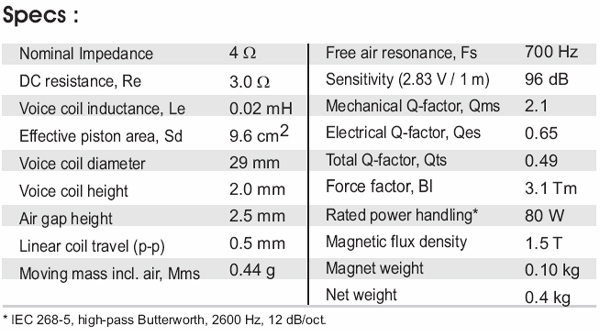

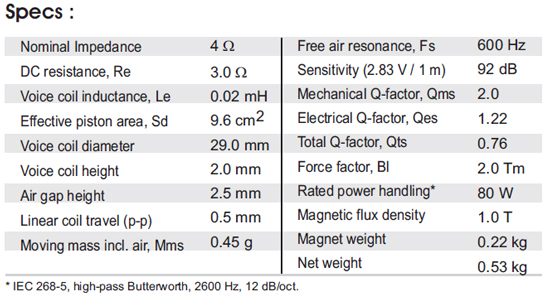

SATORI-TW29R-specs

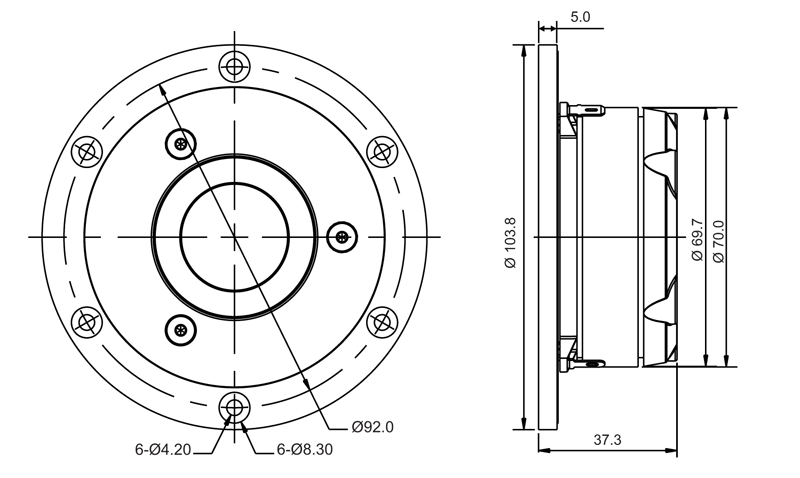

SATORI-TW29R-detail

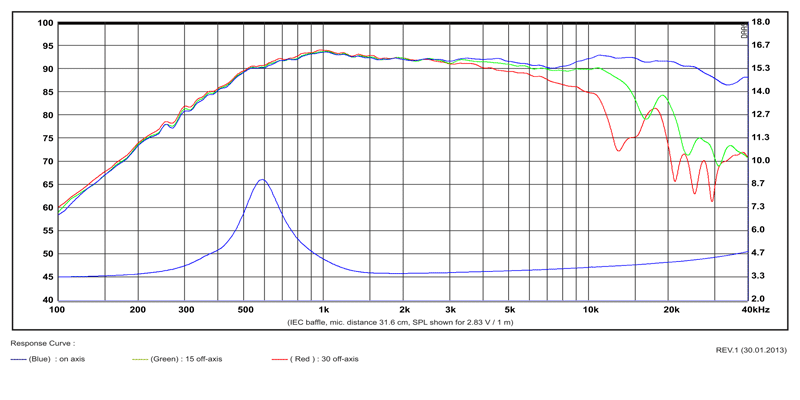

SATORI-TW29R-chart
