Terminating with the high grade spade
- To assemble a DIY cable or terminate internal hookup wire in finsih for professional appearance and optimized sound, Use the right spade is the easier step to upgrade listening pleasure


Mundorf Spades, Germany
   spade fc1cu8T(left),fcicu8(right)
MDF-fc1cu8t Mundorf tin plated Y spade
tin plated, hold with a max. outside dia. of 6.5 mm cable, with dia. 8.5 mm open in Y plate, 2mm thickness
Size: 14.5 x 39mm long

MDF-fc1cu8 Mundorf copper plated Y spade
copper plated, hold with a max. outside dia. of 6.1 mm cable, with dia. 8.5 mm open in Y plate, 2mm thickness
Size: 15.5 x 39mm long

fc1cu6g(left), fc1cu8g(right)MDF-fc1cu6g Mundorf Y spade
gold plated, hold with a max. outside dia. of 6 mm cable, with dia. 6.5 mm open in Y plate, 2.4 mm thickness
Size: 14 x 38mm long

MDF-fc1cu8g Mundorf Y spade
gold plated, hold with a max. outside dia. of 6 mm cable, with dia. 8.5 mm open in Y plate, 2 mm thickness
Size: 15.5 x 43mm long

MDF-b4becu Mundorf Banana plug
gold plated pin, black & red,
Size: 12 x 33mm long

Michael Spade, Germany
    Special sale price offered for volume order.

Micheal Space Y spade, 8 mm Michael Space Y spade L,
  Gold plated, hold with a maximum outside diameter of 8 mm cable
  with dia. 4.5mm & 8 mm in Y plate, 2mm thickness



Micheal Space Y spade, 6 mm Michael Space Y spade M,
  Gold plated, hold with a maximum outside diameter of 6 mm cable
  with dia. 4.5mm & 8 mm in Y plate, 2mm thickness



Micheal Space Y spade, 4 mm Michael Space Y spade S,
  Gold plated, hold with a maximum outside diameter of 4 mm cable
  with dia. 4.5mm & 8 mm in Y plate, 2mm thickness

Cardas Y Spade, USA

GRS Rhodium spade with gold plated crimping ring
    holds dia. 5mm cable, dia 8 mm in Y plate, 2mm thickness





OFC  Spade with copper plated (top)
    holds dia. 4mm cable, dia 6 mm in Y plate, 2.4mm thickness
  OFC  Spade with rhodium plated (bottom)
    holds dia. 4mm cable, dia 6 mm in Y plate, 2.4mm thickness



CCMSR1 Mike Colver milled spade,  rhodium plated
    CCMSG1 Mike Colver milled spade, gold plated
    Billet  copper, holds dia. 7.5mm cable, dia 6.5 mm in Y plate, 2.5mm thickness



Spades & Terminal, Taiwan

Copper spade with gold plated
    SPD24-t  holds dia. 2mm cable, dia 4 mm in Y plate, 1mm thickness(left)
    SPD46-t holds dia. 4.6mm cable, dia 6 mm in Y plate, 1.2 mm thickness(middle)
    SPD44-t holds dia. 4.6mm cable, dia 4.4 mm in Y plate, 1.2mm thickness(right)

Copper Ring Terminal, gold plated
    TTR25-t  holds dia. 2.2mm cable, dia 5.5 mm in ring, 0.9mm thickness(upper left)
    TTR-t      holds dia. 4.8mm cable, dia 6 mm in ring, 1 mm thickness(upper middle)
    TTR911-t holds dia. 9.6mm cable, dia 11 mm in ring, 1.8mm thickness(upper right)

    TTR585-t  holds dia. 5mm cable, dia 8.5 mm in ring, 1.2mm thickness(lower Left)
    TTR685-t  holds dia. 6mm cable, dia 8.5 mm in ring, 1.6 mm thickness(lower right)

TTR585-t(lower left), TTR685-t(Lower right)

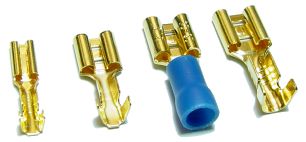

Trcp31 Terminal receptacle, 3mm Pin width., fit wire up to 1.6m dia., 0.3mm thickness, brozne

Trcp52 Terminal receptacle, 5.5mm Pin width., fit wire up to 2.2mm dia., 0.4mm thickness, brozne

Trcp62-GRP Terminal receptacle, 6.5mm Pin width., fit wire up to 2.2mm dia., 0.4mm thickness, PVC sleeved, brozne

Trcp623 Terminal receptacle
brozne, 6.5 mm Pin width., fit wire up to 2.3mm dia., 0.4mm thickness





Teye63-DPO Terminal eyelet
brass, gold plated, round head, 6.5mm dia., use for wire below 3.6mm dia., 1 mm thickness, 22.8mm length

Teye106-DPO Terminal eyelet
brass, gold plated, round head, 10.6mm dia., use for wire below 6 mm dia., 1.6 mm thickness, 32.5mm length

Teye88-DPO Terminal eyelet
brass, gold plated, round head, 8.5mm dia., use for wire below 8.1 mm dia., 2 mm thickness, 33.5mm length

Teye138-DPO Terminal eyelet
brass, gold plated, round head, 13mm dia., use for wire below 8 mm dia., 2 mm thickness, 43 mm length








Trcp6-GRP Terminal receptacle
3.5mm Pin width., fit wire up to 3.5mm dia., 0.6mm thickness, PVC sleeved, brozne

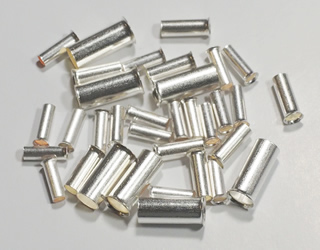

Strand End Sleeves

SES258
copper over silver plating, 2.5 mm x 8 mm(rim 3 mm), 2.2mm inner dia.

SES39
copper over silver plating, 3 mm x 9 mm(rim 4 mm), 2.7mm inner dia.

SES512
copper over silver plating, 5 mm x 12 mm(rim 5.6 mm), 4.4mm inner dia.

Tbld66 Terminal Blade Pin
6.5mm Pin width, 6.5mm fixing hole, 0.8mm thickness, brozne

Tbld66-2 Dual Terminal Blade Pin
6.5mm Pin width, 6.5mm fixing hole, 0.8mm thickness, brozne



Spade with gold plated
GPYP-Du
Gold plated Spade, holds for optional wire at 4mm/6mm dia., Y spade open at 6mm/8mm dia., 1.5mm thickness

GPYP59 Gold plated Spade, holds for 5mm wire dia., Y spade open at 6mm/9mm dia., 2mm thickness

Spade with gold plated
     SPD-L46-t  holds dia. 4.6mm cable, dia 6 mm in Y plate, 2mm thickness




  CMC Spade, gold plated
     SPD-L46-cmc  holds dia. 4 or 5mm cable, dia 5 mm in Y plate, 2mm thickness







PSYP4 Pure Silver Spade
   holds a maximum outside diameter of 4 mm cable
  with dia. 5.7 mm & 8 mm in Y plate, 1.6mm thickness, come with gold plated crimping ring , Photo shows a pair(set of 4 pcs)

Pure silver Y spade PSYP5-GL / PSYP5-R PSYP5-GL Pure silver Y spade
Gold plated, holds 5mm dia. cable, 8mm open, L shape( shown in upper photo)

PSYP5-RL Pure silver Y spade
Rhodium plated, holds 5mm dia. cable, 8mm open, L shape

PSYP5-G Pure silver Y spade
Gold plated, holds 5mm dia. cable, 8mm open

PSYP5-R Pure silver Y spade *discontinued from production
Rhodium plated, holds 5mm dia. cable, 8mm open

PSYP9-R left/PSYP17-R middle/PSYP13-R right

PSYP9-R 9mm Pure silver spades over rhodium plated
holds up to 9mm dia. of wire, 8mm Y open

PSYP17-R 17mm Pure silver spades over rhodium plated
holds up to 17mm dia. of wire, 8mm Y open

PSYP13-R 13mm Pure silver spades over rhodium plated
holds up to 13mm dia. of wire, 8mm Y open


Furutech PCOCC Spade,Japan

  PCOCC spade with gold plated
    SPD-346-F  holds dia. 3.6mm cable, dia 4 mm & 6.6mm in Y plate, 1.2 mm thickness(left)
    SPD-holds dia. 3.6mm cable, dia 6.5 mm & 8.8mm in Y plate, 1.2 mm thickness(right)

  PCOCC Binana pin with gold plated, length 30mm, holds dia. of 4.3mm cable


Vampire Spade,USA

  Vampire spade with gold plated
     holds dia. 4mm cable, dia 2.3, 5.5 & 6mm in Y plate, 2.5 mm  thickness, screw tighten,


TIFF Spade, USA

Spade with gold plated
    holds dia. 3.6mm cable, dia of 3.3, 5.2 & 6.6 mm in Y plate, 2.7mm thickness
    screw in and tighten
For OdiO spades, please click here
Please contact for other spec or requirements not listed on this page
