Listen to the difference & excellence!
Developed to superior sonic performances..

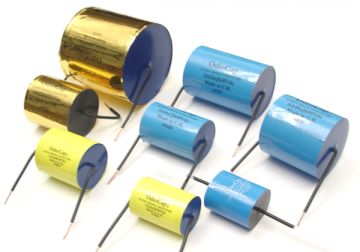

OdiOcap
Capacitors
OEM to UK



Characters;

- Designed to superior sonic performance and difference.
- Each capacitor is manufactured in line with the company's BS/EN/ISO9001, 2000 approval ensuring that components supplied are of the very highest quality
- Dissipation factor: ≤ 0.001@1KHZ & 20 +/-3°C

- Wrap and end-sealed by high grade epoxy resin
- OEM to UK

SA series, polypropylene
Tol. +/-5%, 630Vdc, developed for signal coupling use
round shape, copper lead wire,
Dissipation factor: ≤ 0.001@1KHZ & 20 +/-3°C

Capacitance Size:(Dia. x Length)
0.1 uf/630V,
0.22 uf/630V,

0.33 uf/630V,
0.47 uf/630V,

0.68 uf/630V,
0.82 uf/630V,

1.0 uf/630V,
22 x 39mm
1.5 uf/630V,
27 x 39mm
2.0 uf/630V,

2.2 uf/630V,
31 x 39mm
2.7 uf/630V,
33 x 39mm
3.0 uf/630V,
34 x 39mm
3.3 uf/630V,
35 x 39mm
3.9 uf/630V,
39 x 39mm
4.0 uf/630V,

4.3 uf/630V,

4.7 uf/630V,
35 x 46mm
5.1 uf/630V,

5.6 uf/630V,38 x 46mm
6.2 uf/630V,
40 x 46mm
6.8 uf/630V,
42 x 46mm
8 uf/630V,

8.2 uf/630V,
45 x 46mm
10 uf/630V,
49 x 46mm
12 uf/630V,

15 uf/630V,
49 x 66mm
20 uf/630V,

22 uf/630V,
58 x 66mm
27 uf/630V,
64 x 66mm
30 uf/630V,

33 uf/630V,70 x 66mm
39 uf/630V,
76 x 66mm
47 uf/630V, 82x66 mm

50 uf/630V

PX series, polypropylene
Tol. +/-5%, 250Vdc, developed for audio grade speak use
oblong shape, copper lead wire
Dissipation factor: ≤ 0.001@1KHZ & 20 +/-3°C

Capacitance Size:(Width x Thickness x Length)
6.8 uf/250V, 32 x 27 x 34mm
10 uf/250V,
31 x 26 x 47mm
15 uf/250V,
37 x 32 x 47mm
22 uf/250V,
44 x 39 x 47mm
33 uf/250V,
46 x 41 x 60mm
47 uf/250V,
54 x 49 x 60mm
82 uf/250V,

100 uf/250V,


PW series, metallized polypropylene
Tol. +/-5%,oblong shape, general purpose use
A ideal for a wide range of applications particularly those requiring a low loss or low dielectric absorption component in high quality hi-fi

Capacitance Size:(Width x Thickness x Length)
15 uf/160V, 26 x 21.5 x 47mm
22 uf/160V,

39 uf/160V,
47 uf/160V, 44 x 39 x 47mm
68 uf/160V, 52 x 47 x 47mm
82 uf/160V,
100uf/160V 62 x 57 x 47mm

Else items not listed above, please contact


Last updated on 3/31/14
