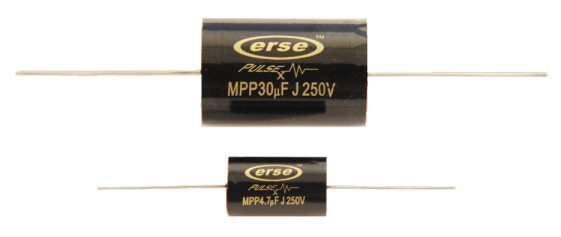

ERSE's Pulse X caps a premium audiophile grade capacitor
Mfg. of USA

OVERVIEW
ERSE  Pulse X caps are a premium audiophile grade capacitor designed for quick transient response and ultimate musical performance.
Every attention to detail was put into the PulseX capacitor line to insure premium performance. A premium grade of efect free aluminum metallized polypropylene film was chosen from an industry leading film supplier.

Specially designed German winding machines with tension feedback control allow for precision repeatability during manufacturing. This industry first technique allows us to virtually eliminate mircrophonics and obtain a tight +/- 3% tolerance, with virtually no scrap.

Pulse X quality continues; all leads are lead free (RHOS Compliant), oxygen free 99.99% pure copper.
Each lead is attached to the body of the capacitor with ultrasonic welding.
To further reduce equivalent series resistance and improve long term reliability , the leads are then soldered with lead free silver solder.
PulseX caps are then wrapped in flame proof polyester tape and the ends are epoxy filled. Before final packing, each PulseX cap is tested with certified premium quality Wayne Kerr capacitance bridges to insure a +/- 3% tolerance centered on the nominal value.

The PulseX caps display signs of a near perfect capacitor. Total harmonic and IMD distortion and phase distortion are virtually immeasurable, while all losses are near zero in every aspect. PulseX caps will allow your music to be accurate and uncolored in every way.

FEATURES
- Short body- quick transient design
- Welded and hand soldered leads
- Very Low Dielectric absorption factor
- Very Low dissipation factor
-
Very Low ESR Very Low Inductance
-
Very High Insulation Resistance
-
Excellent Reliability Excellent handling of high current audio pulses
-
RoHS Compliant

SPECIFICATIONS
- Tolerance: +/- 3% centered on nominal value
-
Dissipation Factor: .001 to .0001 (see details)
-
ESR: Very Low
- Dielectric Absorption Factor: <= 100,000 M£[
- Temperature Range: -25C to 85C

  • Rated Voltage: 250Vdc/150Vac
  • Dielectric Thickness: 4£gm
  • Metal Layer Thickness: .03£gm

Sound Characters;
"
True Sonic realism and clarityӤ


Capacitance (uF)
Working voltage 250Vdc/150Vac
, +/- 3%
1.0 uf

1.5 uf
2.2 uf
3.3 uf
4.7 uf
5.6 uf
8.2 uf
9.1 uf
10 uf
12 uf
15 uf
18 uf
20 uf
22uf
24 uf
27 uf
33 uf
47 uf

 For others value and series specifications, please contact
